Advanced V-Wire Injection Well Technology for Groundwater Recharge solution

Name: Advanced V-Wire Injection Well Technology for Groundwater Recharge solution
Brand: FARMLAND RAINWATER HARVESTING SYSTEMS
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Advanced V-Wire Injection Well Technology for Groundwater Recharge solution Specification

Product Type
Groundwater Treatment System

Membrane Size
Customized

Color
Green

Membrane Quantity
Adjustable

Function
Semi automatic

Material
HDPE

Advanced V-Wire Injection Well Technology for Groundwater Recharge solution Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About Advanced V-Wire Injection Well Technology for Groundwater Recharge solution

Groundwater Recharge V-Wire Injection Well Technology

Our Groundwater Recharge solution usesAdvanced V-Wire Injection Well Technology. This modern method incorporates V-Wire screens for filtration and works purely ongravitational force, making it durable, energy-free, and long-lasting

Working Details V-Wire Injection Well Technology

TheV-Wire Injection Wellis designed torecharge groundwater efficientlyusing filtered rainwater or surface runoff.

Water Collection: Rainwater from rooftops, paved surfaces, or stormwater drains is directed into thesilt trap unit.

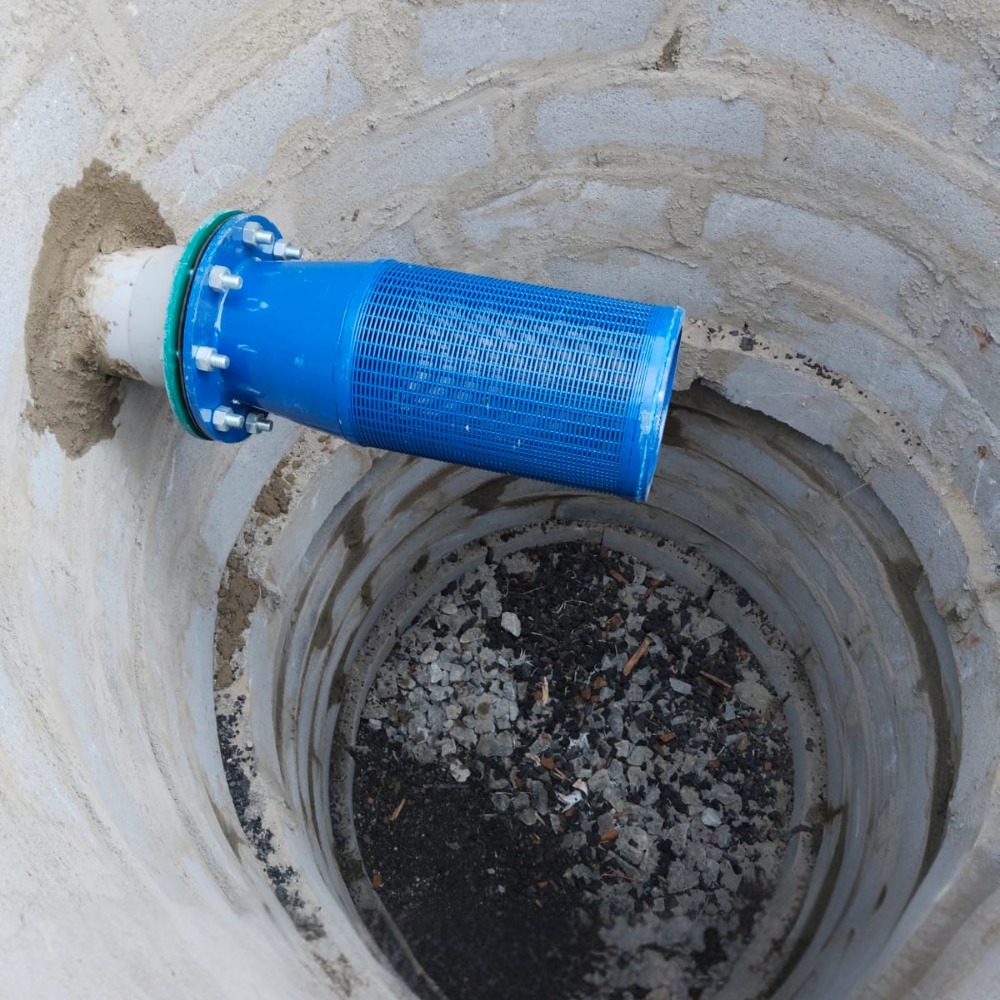

Primary Filtration: Large debris and sediments are removed in the silt trap, while theV-Wire stainless steel screenprevents fine particles from entering the well.

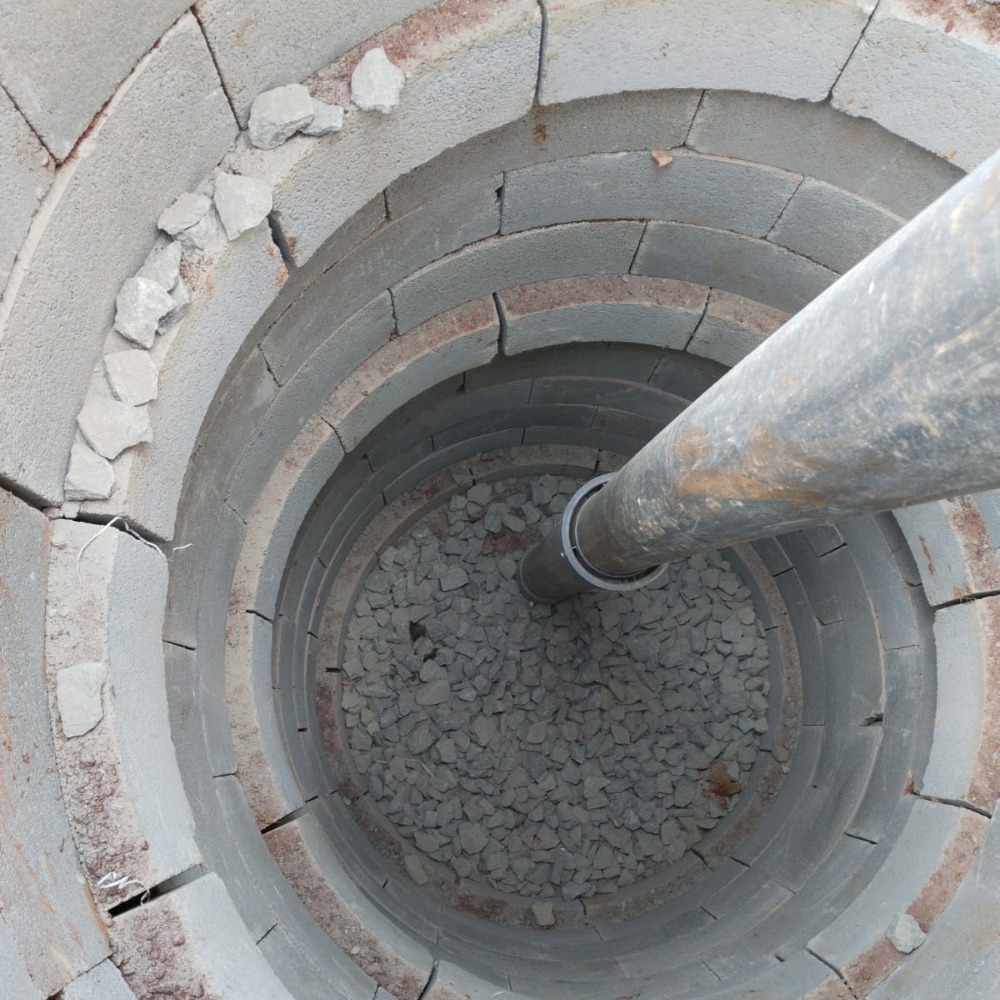

Multi-Layer Filtration: Water passes through layers ofcrushed stone, coarse sand, activated carbon, and charcoal, ensuring clean water enters the bore.

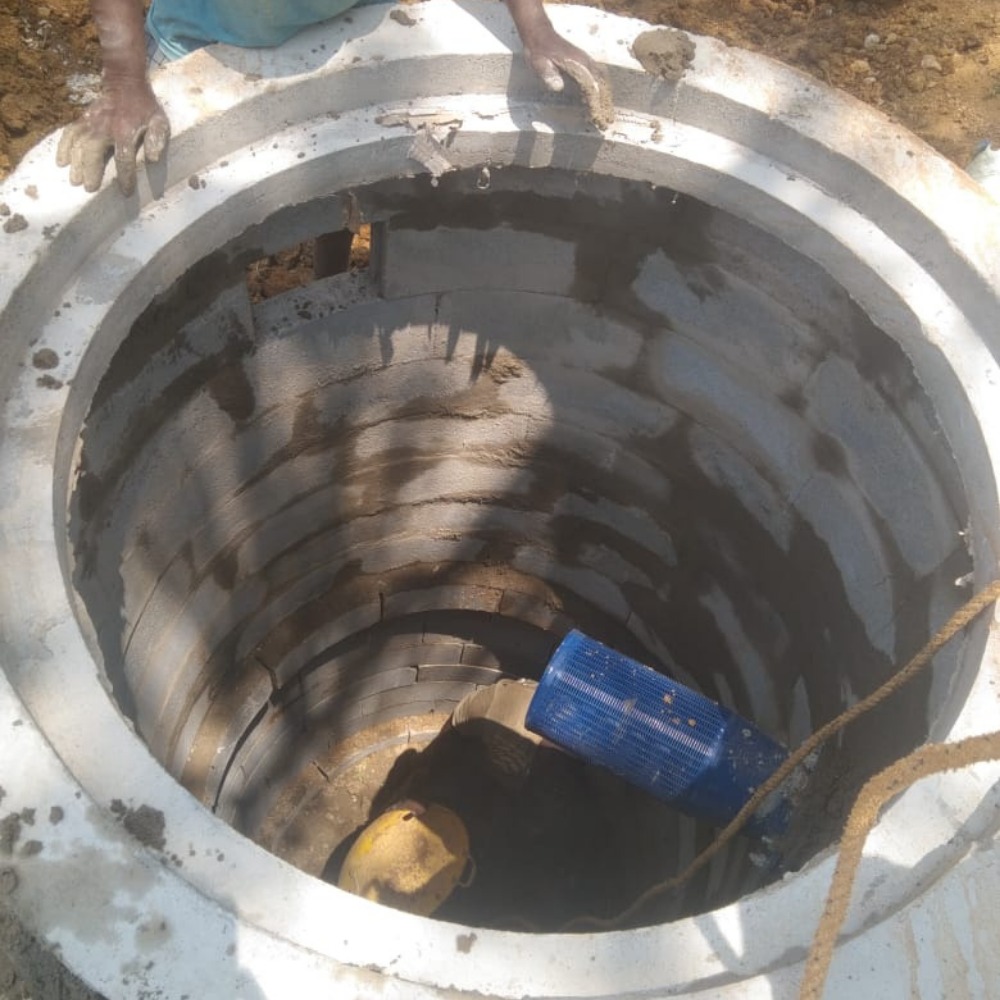

Injection into Borewell: Filtered water is injected through thebore equipped with a V-Wire screen, allowing even distribution and preventing clogging.
Groundwater Recharge: Water percolates into the surrounding soil and aquifer, replenishing underground water levels sustainably.
Maintenance: The system isself-cleaningwith minimal maintenance, and periodic silt trap cleaning ensures continuous operation.

Technical & Performance Specifications

Specification	Detail
Suitable Area	1 to 8 acres (depending on terrain & strata)
Rainfall Intensity	12.5 mm/hr to 75 mm/hr
Working Principle	Gravitational Water Column Pressure
Operating Pressure	0.05 0.6 kg/cm
Percolation Capacity	25,000 50,000 liters per 24 hours
Injection Well Screen	SS-304 V-Wire Screen, slot size 0.75 mm
Discharge of V-Wire	5 20 liters per second
Percolator Pipe	140 mm HDPE pipe, perforated with 8 mm holes at 30 mm interval
Injection Well Diameter	1350 2100 mm
Injection Well Depth	5 6 m
Recharging Bore Diameter	225 mm
Recharging Bore Depth	20 60 m (depending on permeable layer)
Silt Trap Diameter	1000 1350 mm
Silt Trap Depth	1 3 m
Filter Unit in Silt Trap	SS-304 Horizontal Mount, 150 200 mm diameter, slot size 3 mm

Key Benefits

Eco-friendlyandenergy-free
Non-clogging V-Wire design long durability
Handles high rainfall & large volumes
Customizableas per soil & groundwater

Efficient Groundwater Recharge Solution

Our Advanced V-Wire Injection Well Technology offers a robust and sustainable approach for recharging groundwater. Engineered in durable MS material with a corrosion-resistant green coating, this system maximizes water percolation while ensuring long-term performance in tough industrial environments. Its suitable for a variety of recharge projects and meets industry standards for reliability and durability.

Quality You Can Rely On

Quality is at the core of this solution. Each well system is manufactured to ensure consistent performance, featuring good-quality V-wire design for optimal flow and filtration. The product comes with a 1-year warranty, providing assurance and reliable after-sales support from trusted suppliers in India.

FAQs of Advanced V-Wire Injection Well Technology for Groundwater Recharge solution:

Q: How is the Advanced V-Wire Injection Well Technology used in groundwater recharge projects?

A: The Advanced V-Wire Injection Well Technology is installed in suitable locations, allowing excess surface water to directly percolate into underground aquifers. Its unique V-wire design maximizes filtration and reduces clogging, making it efficient for industrial-scale groundwater recharge applications.

Q: What makes this injection well technology suitable for industrial usage?

A: Designed with industrial applications in mind, this solution utilizes high-grade MS material and a durable, round structure to withstand harsh operational conditions. The good-quality V-wire design ensures long service life and consistent groundwater recharge performance.

Q: When should this groundwater recharge technology be implemented?

A: Implementation is recommended during periods of water abundance, such as after heavy rainfall or in alignment with water management policies. Early planning ensures optimal site preparation and effective recharge during peak water availability.

Q: Where can the Advanced V-Wire Injection Well Technology be installed?

A: This technology is suitable for installation in industrial premises, recharge wells, and urban water management projects across India. Its standard sizes and round shape allow easy adaptation to diverse geological conditions and site requirements.

Q: What is the process involved in installing this injection well system?

A: Installation involves drilling an appropriate site, fitting the V-wire well screen, and establishing connections to direct recharge water. The process emphasizes correct placement and sizing to optimize infiltration efficiency and operational durability.

Q: How does using this technology benefit industrial water management?

A: By facilitating direct aquifer recharge, the technology helps industries comply with water sustainability mandates, replenishes depleted groundwater resources, and supports long-term water security. Its reliable design ensures reduced maintenance and operational costs.

Q: What warranty and support does the product come with?

A: The Advanced V-Wire Injection Well Technology comes with a 1-year warranty, ensuring quality assurance and responsive support from reputable manufacturers and suppliers based in India.
