Rain Water Harvesting Filter FL-150 180 SQ Mtr

Price 10850.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

Rain Water Harvesting Filter FL-150 180 SQ Mtr Trade Information

Minimum Order Quantity
100 Units

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

About Rain Water Harvesting Filter FL-150 180 SQ Mtr

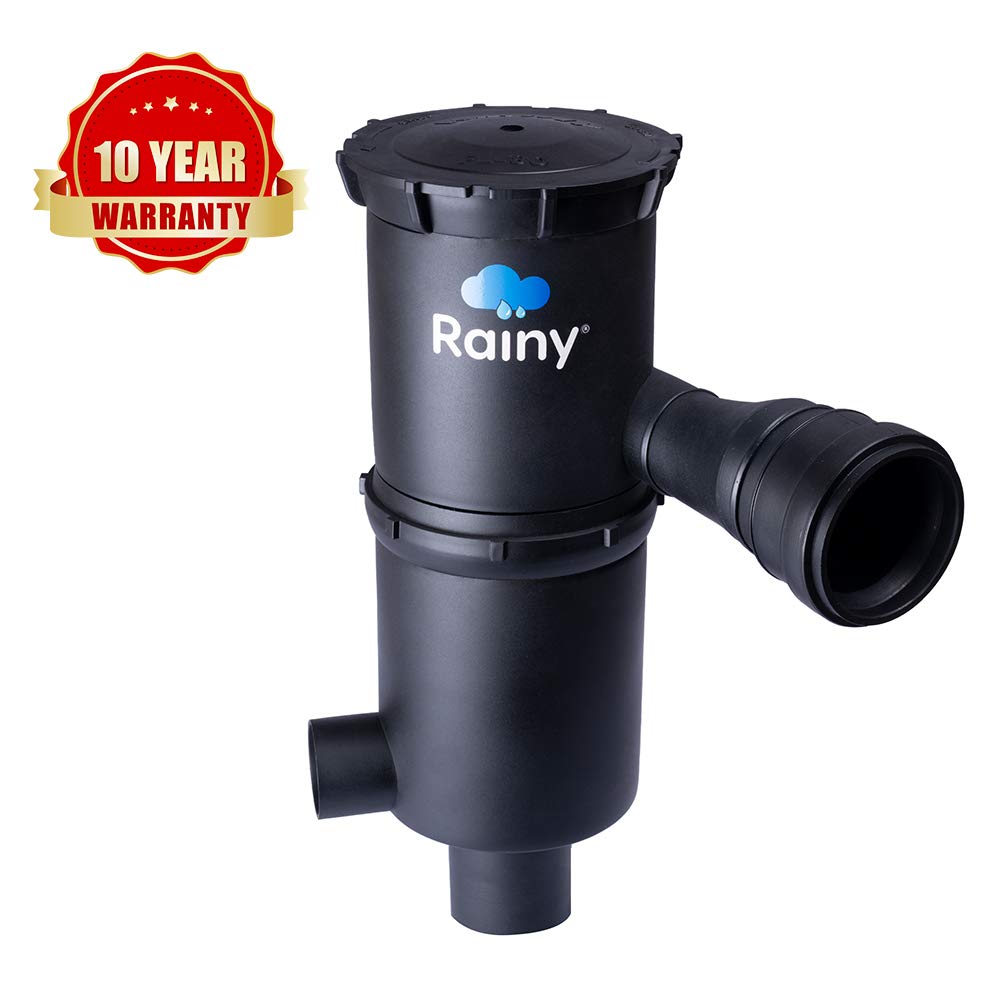

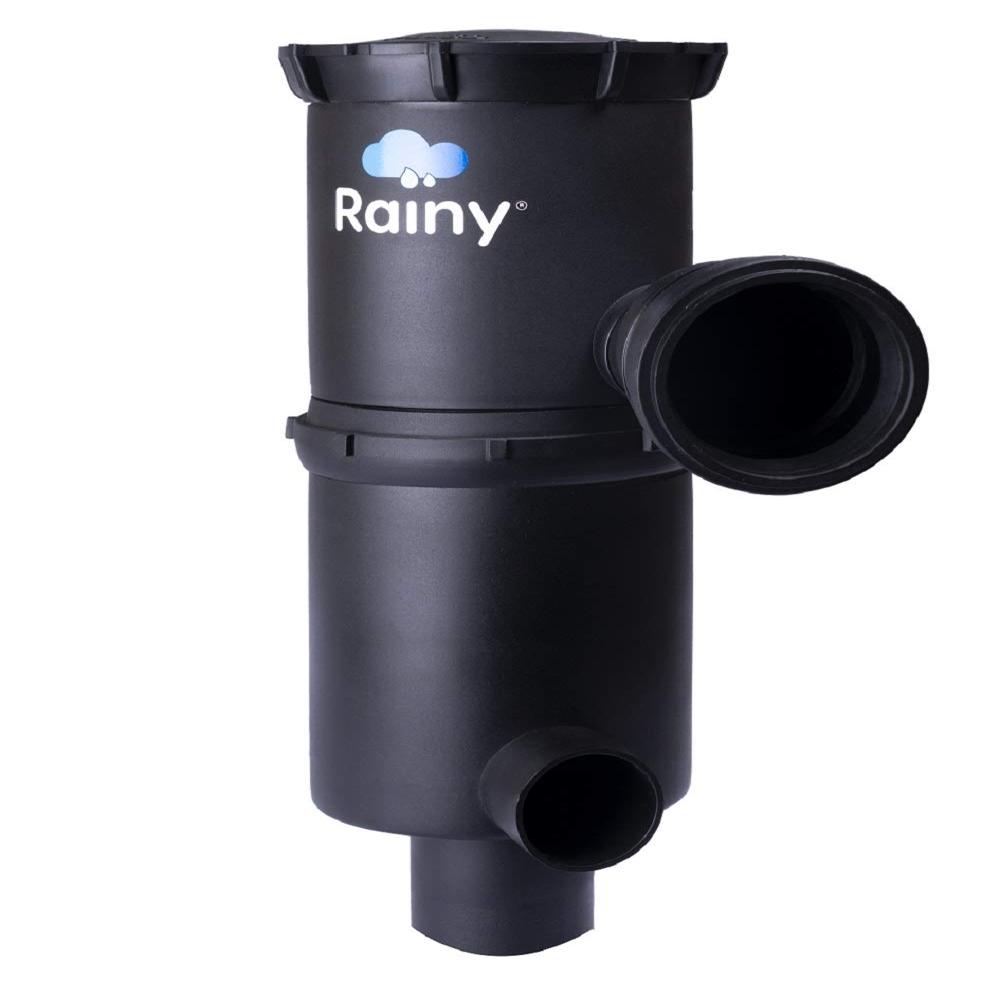

FL-150 Rainwater Harvesting Filter (For Rooftops up to 180 sq.mtrs / 1,800 sq.ft.)

The FL-150 Rainwater Harvesting Filter is a cutting-edge solution for efficient and sustainable rainwater collection. Designed with dual-intensity technology, it automatically adapts to rainfall conditions from 5mm/hr to 75mm/hr, ensuring >90% filtration efficiency with minimal maintenance.

Key Features

Self-Cleaning & Auto Flush-Out Works purely on gravity, no electricity required.
Dual Intensity Efficient even during heavy rainfall.
Easy Installation & 360 Rotatable. Fits any roof layout.
Low Maintenance & High Filtration Efficiency.Durable and long-lasting.
Premium Material: HDPE housing & SS-304 food-grade screen.

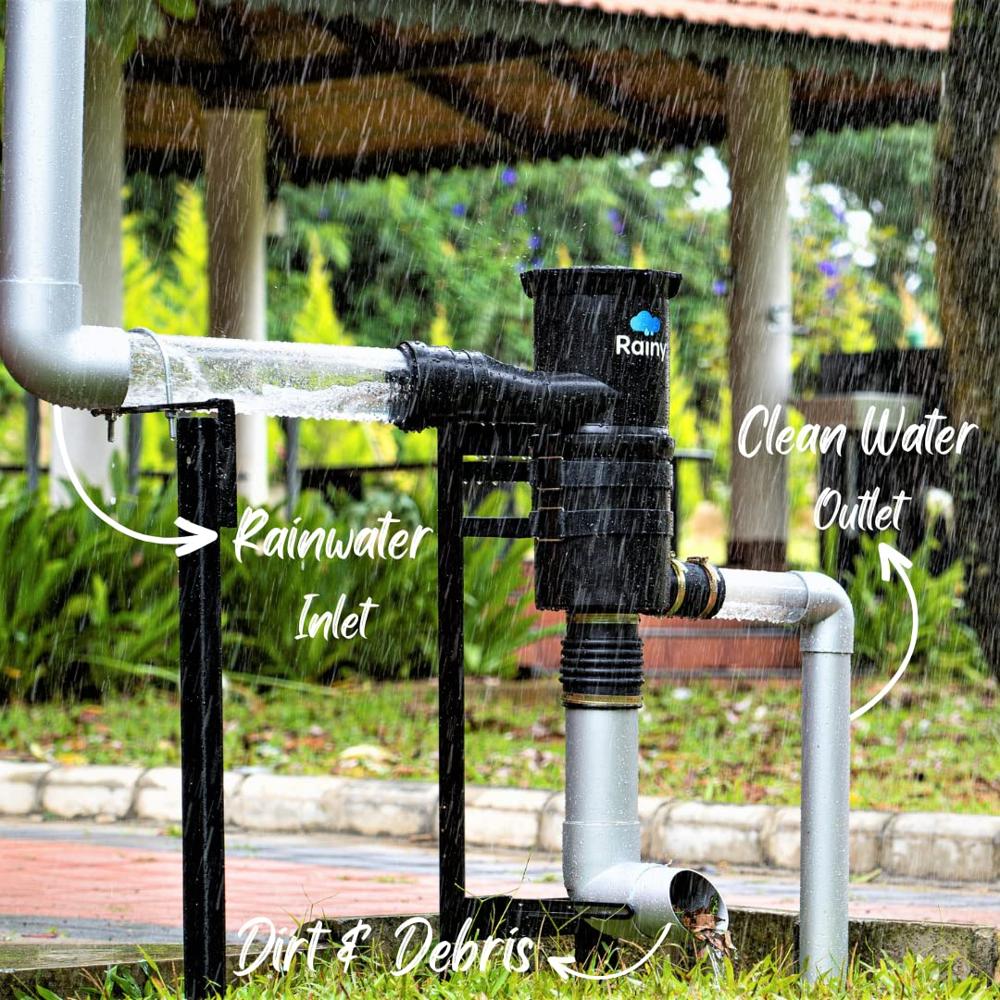

This wall-mountable filter works purely on gravitational force, requiring no electricity, no moving parts, no consumables, and no replacements.

Awards & Certifications:

10 Years Warranty (Patented Product)
Winner of National Award (CII) Excellent Water Product
International Award for Climate Mitigation
Certified by the Central Water Resource Ministry (GoI)

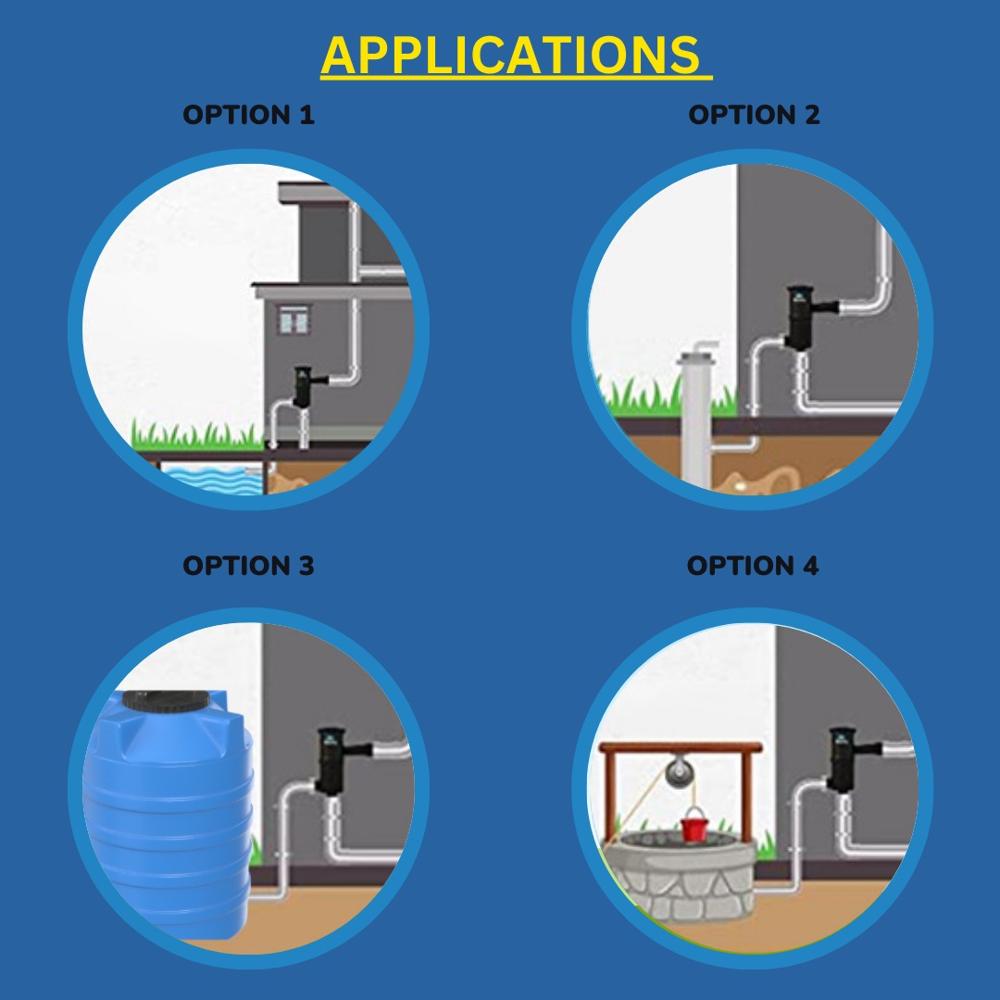

Application

Filtered water can be:

Stored for gardening, washing, and other domestic uses
Redirected to recharge groundwater
Promotes efficient and sustainable water utilization.

Technical Specifications

Suitable for Area	Upto 180 SQMTRS
Intensity of Rainfall	5 mm/Hour to 75 mm/Hour
Filter Type	Open ended, Non-clog
Working Principle	Cohesive Force & Centrifugal Force
Operating Pressure	1 foot of Gravity Head (0.060kg/cm2)
Filter Element	SS-304 Multi-Surface Screen - Food Grade
Mesh Size	250 Microns
Inlet Size	90 MM
Clean Water Outlet size (CWO)	75 MM
Drain Outlet size	90 MM
Filter Housing	UV Stabilized - HDPE
Filter Efficiency	Above 90
Source of Power	Gravity

FAQs of FL-150 180 SQ Mtr Eco-Friendly Rainy Filter:

Q1: How does the FL-150 Rainwater Harvesting Filter achieve over 90% filtration efficiency?

A: The FL-150 operates on the principles of cohesive and centrifugal forces using a SS-304 food-grade multi-surface screen (250 microns). This ensures efficient removal of debris and contaminants, maintaining over 90% filtration efficiency even under varying rainfall conditions.

Q2: How is the FL-150 filter installed?

A: The filter is wall-mounted and 360 rotatable, allowing easy alignment with existing downpipes. Installation is simple and requires no electricity, consumables, or complex maintenance it functions purely by gravity flow.

Q3: Where can the FL-150 be effectively used?

A: The FL-150 is suitable for rooftop areas up to 180 sq. meters (2,000 sq. ft.), ideal for residential, commercial, and small industrial buildings to harvest and reuse clean rainwater or recharge groundwater.

Q4: What are the key benefits of the FL-150 filter?

Self-cleaning and automatic flush-out
Works without power or moving parts
Durable FRP/HDPE housing and SS-304 screen
Easy to install and maintain
Patented dual-intensity technology (575 mm/hr rainfall range)

Q5: What warranty and certifications does the FL-150 include?

A: The filter comes with a 10-year warranty and is a patented product certified by the Central Water Resources Ministry (Government of India). It has also received National and International Awards for excellence in water product innovation.
