Rainwater Harvesting System FL-80 120 SQ Mtr

Name: Rainwater Harvesting System FL-80 120 SQ Mtr
Brand: FARMLAND RAINWATER HARVESTING SYSTEMS
Price: 7203.0 INR
Availability: InStock

Price 7203.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rainwater Harvesting System FL-80 120 SQ Mtr Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

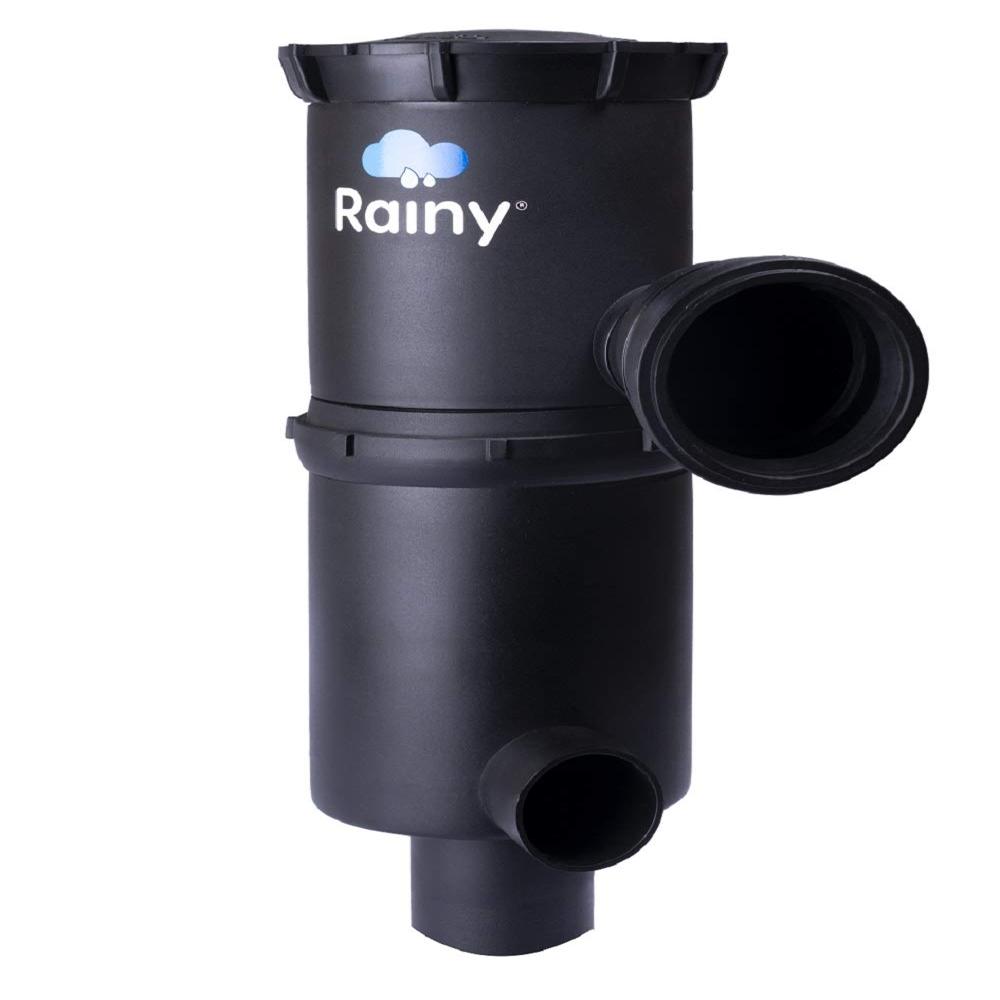

About Rainwater Harvesting System FL-80 120 SQ Mtr

FL-80 Rainwater Harvesting Filter (For Rooftops up to 120 sq.mtrs / 1,2001,300 sq.ft.)

The FL-80 Rainwater Harvesting Filter is a cutting-edge solution for efficient and sustainable rainwater collection. Designed with dual-intensity technology, it automatically adapts to rainfall conditions from 5 mm/hr to 75 mm/hr, ensuring >90% filtration efficiency with minimal maintenance.

Key Features

Self-Cleaning & Auto Flush-Out Works purely on gravity, no electricity required.
Dual Intensity Efficient even during heavy rainfall.
Easy Installation & 360 Rotatable Fits any roof layout.
Low Maintenance & High Filtration Efficiency Durable and long-lasting.
Premium Material HDPE housing & SS-304 food-grade screen.

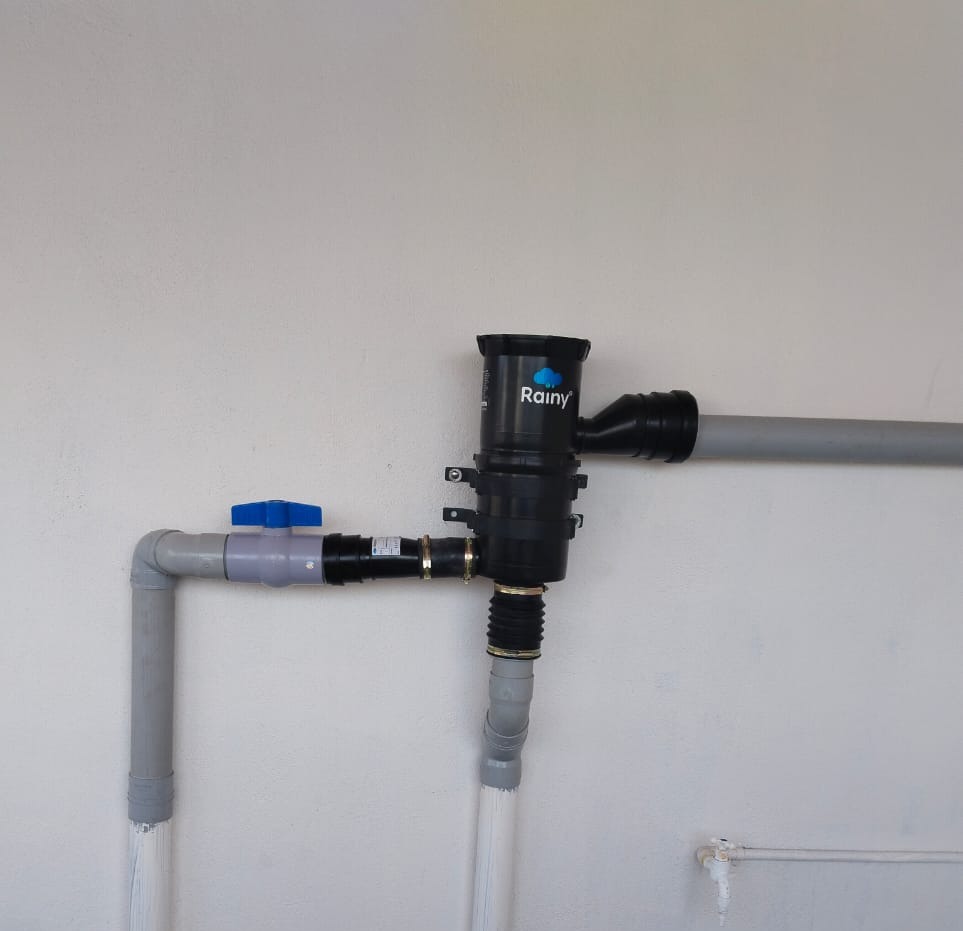

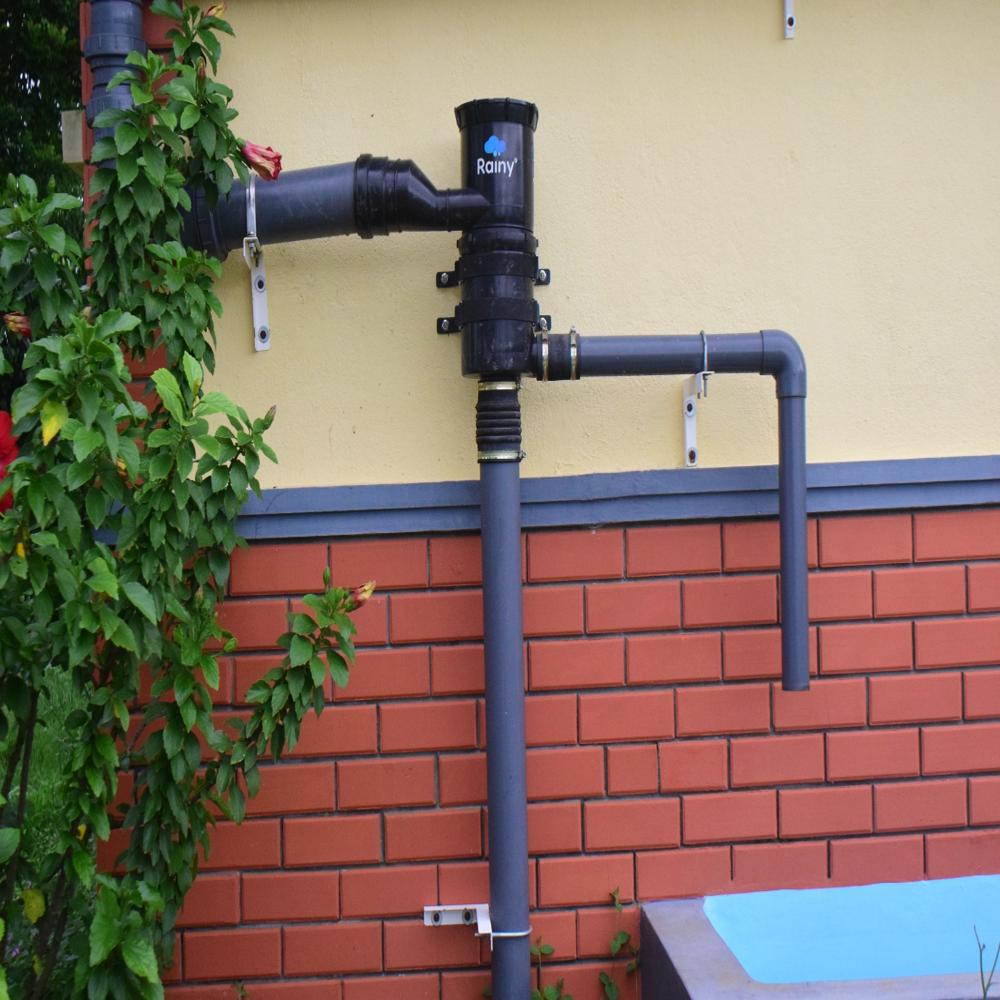

This wall-mountable filter works purely on gravitational force, requiring no electricity, no moving parts, no consumables, and no replacements.

Awards & Certifications:

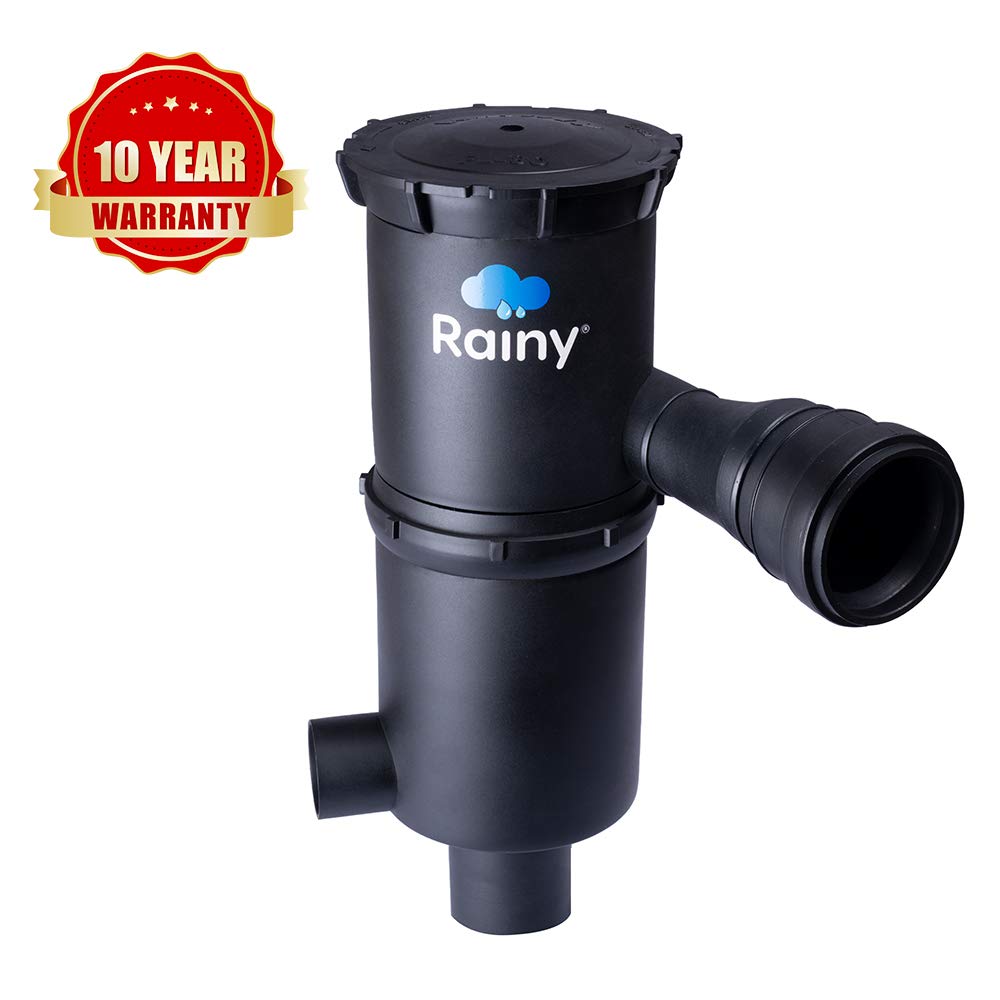

10 Years Warranty (Patented Product)
Winner of National Award (CII) Excellent Water Product
International Award for Climate Mitigation
Certified by Central Water Resource Ministry (GoI)

Application

Filtered water can be:

Stored for gardening, washing, and other domestic uses
Redirected to recharge groundwater
Promotes efficient and sustainable water utilization.

Technical Specifications

Specification	Details
Suitable for Area	Upto 120 SQMTRS
Rainfall Intensity	5 mm/Hour to 75 mm/Hour
Filter Type	Open Ended, Non-Clog
Working Principle	Cohesive Force & Centrifugal Force
Operating Pressure	1 foot of Gravity Head (0.060 kg/cm)
Max Discharge (CWO)	120 Liters per minute
Filter Element	SS-304 Multi-Surface Screen (Food Grade)
Mesh Size	250 Microns
Inlet Size	90 MM
Clean Water Outlet (CWO)	63 MM
Drain Outlet Size	90 MM
Filter Housing	UV Stabilized HDPE
Filter Efficiency	Above 90
Source of Power	Gravity

FAQs of FL-80 120 SQ Mtr Rainwater Harvesting System:

Q: How does the FL-80 Rainwater Harvesting System achieve high filtration efficiency?

A: The FL-80 system uses a dual-stage filtration mechanism combining a pre-filter and a stainless-steel SS-304 mesh element. This self-cleaning system ensures over 90% filtration efficiency, effectively removing debris, leaves, and other impurities to provide clean, reusable water.

Q: What materials are used in the construction of this rainwater harvesting system?

A: The FL-80 is constructed with UV-stabilized HDPE housing and a food-grade SS-304 stainless steel filter element, providing excellent durability, corrosion resistance, and long-term performance in industrial and commercial settings.

Q: Where can the FL-80 120 SQ Mtr system be installed?

A: This system can be installed on rooftops of commercial and industrial buildings, including factories, warehouses, schools, and institutional campuses, making it versatile for various locations.

Q: What does the ordering and delivery process involve?

A: Once the order is confirmed, the FL-80 system is promptly dispatched with secure packaging. Delivery is coordinated to the buyers preferred schedule, ensuring safe and timely arrival.

Q: What are the benefits of using this rainwater harvesting solution?

A: Benefits include sustainable water management, reduced water costs, high-efficiency filtration, durable construction, low maintenance, and a one-year warranty backed by a trusted Indian manufacturer.
