About Roof Runoff Filtration System FL-250 250 SQ Mtr

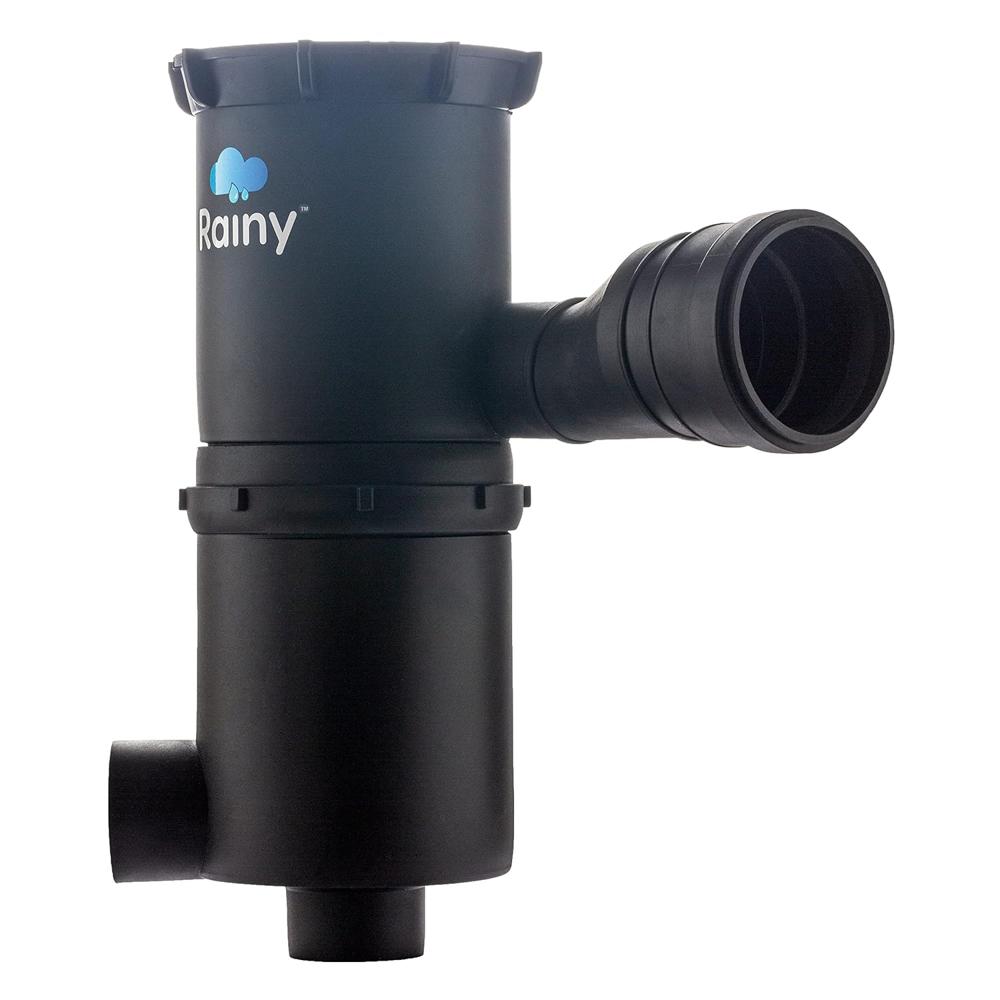

FL-250 Rainwater Harvesting Filter (For Rooftops up to 250 sq.mtrs / 2,800 sq.ft.)

The FL-250 Rainwater Harvesting Filter is a cutting-edge solution for efficient and sustainable rainwater collection. Designed with dual-intensity technology, it automatically adapts to rainfall conditions from 5mm/hr to 75mm/hr, ensuring > 90 % filtration efficiency with minimal maintenance.

Key Features

Self-Cleaning & Auto Flush-Out Works purely on gravity, no electricity required.
Dual Intensity Efficient even during heavy rainfall.
Easy Installation & 360 Rotatable. Fits any roof layout.
Low Maintenance & High Filtration Efficiency.y Durable and long-lasting.
Premium Material: HDPE housing & SS-304 food-grade screen.

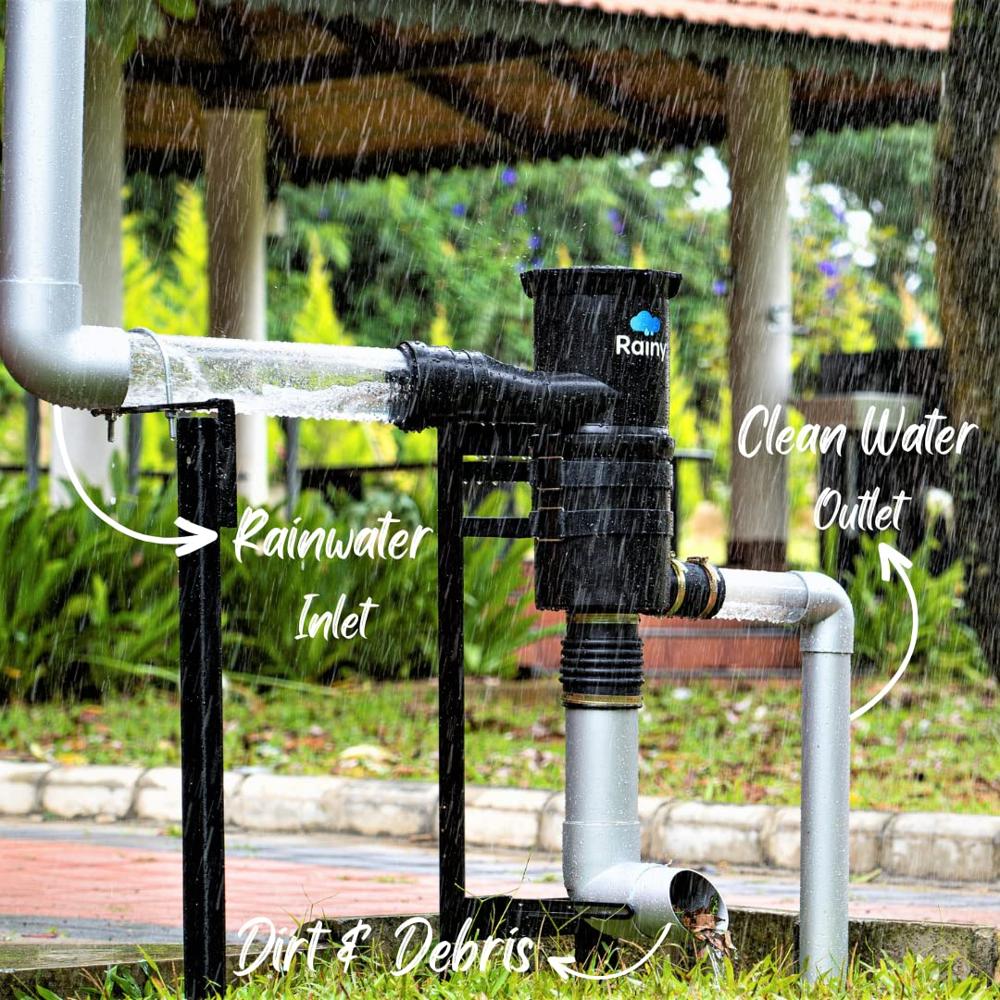

This wall-mountable filter works purely on gravitational force, requiring no electricity, no moving parts, no consumables, and no replacements.

Awards & Certifications:

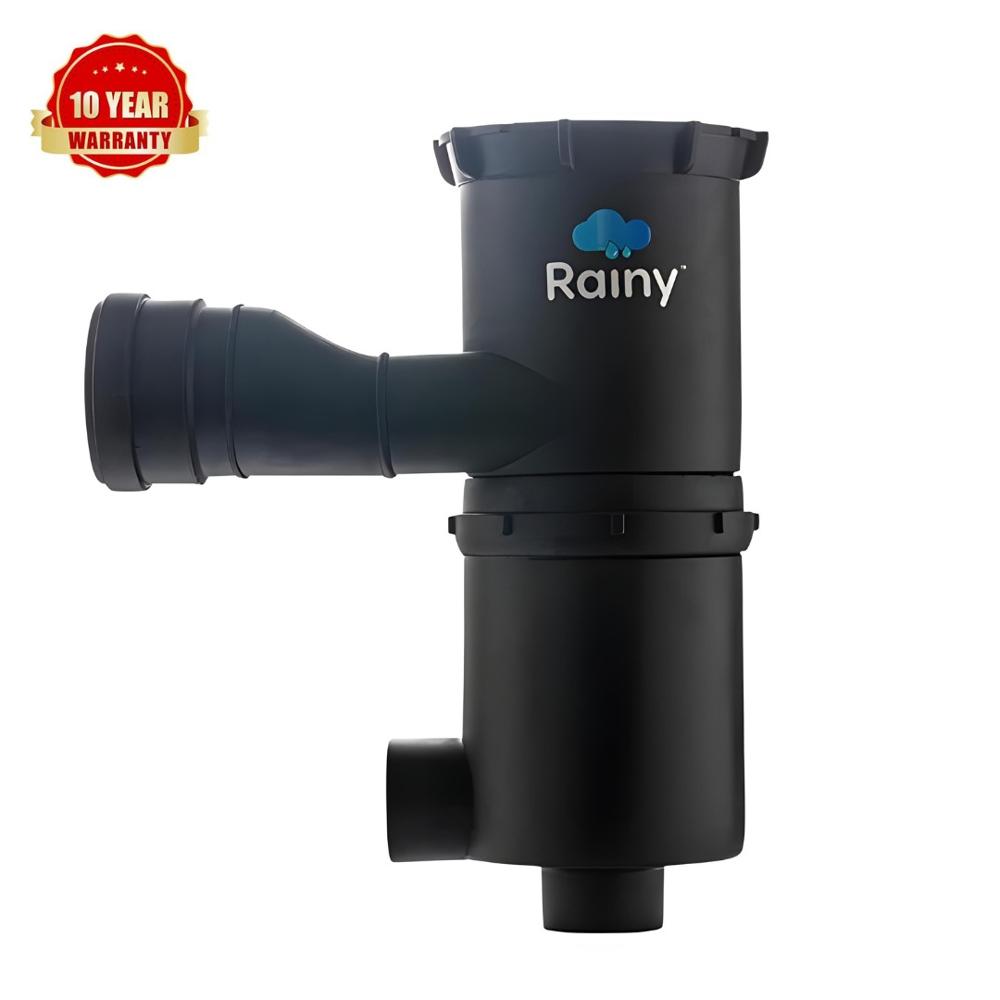

10 Years Warranty (Patented Product)
Winner of National Award (CII)Excellent Water Product
International Award for Climate Mitigation
Certified by the Central Water Resource Ministry (GoI)

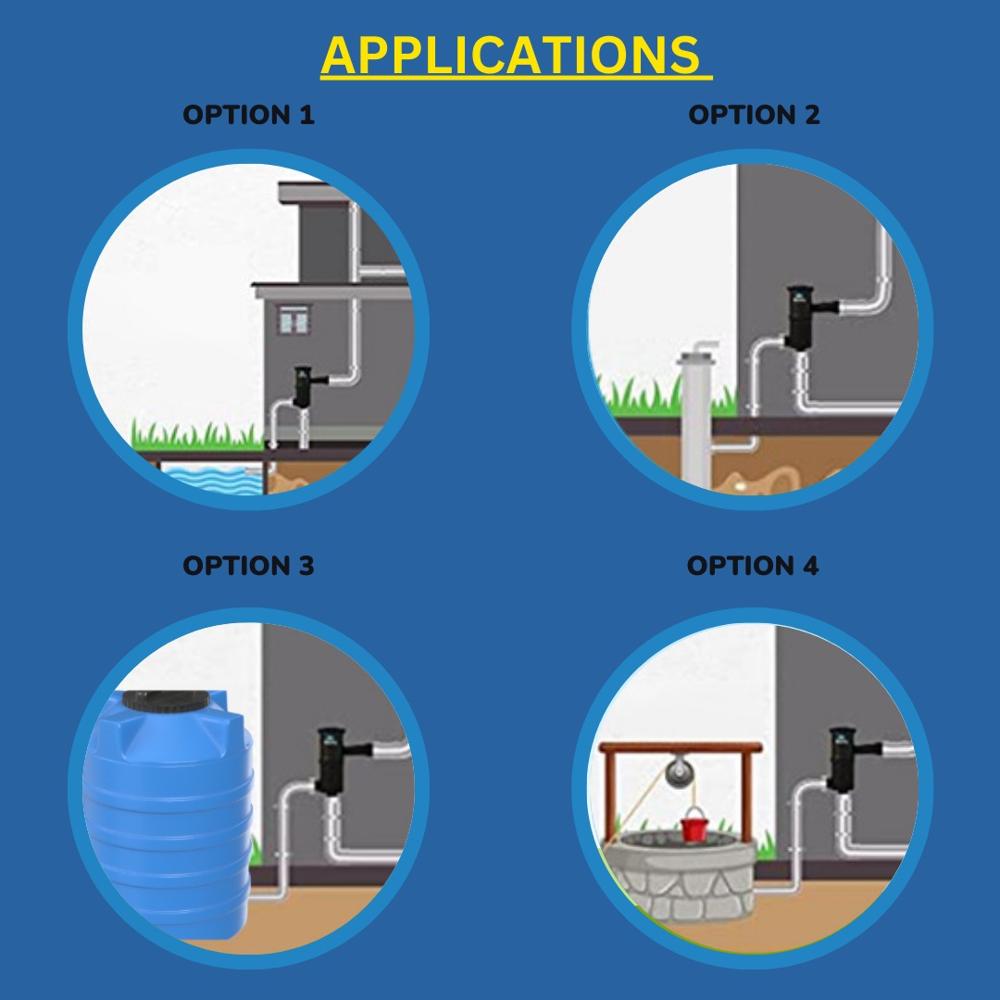

Application

Filtered water can be:

Stored for gardening, washing, and other domestic uses
Redirected to recharge groundwater
Promote efficient and sustainable water utilization.

Technical Specifications

Specification	Details
Suitable for the Area	Up to 250 SQMTRS
Rainfall Intensity	5 mm/Hour to 75 mm/Hour
Filter Type	Open-Ended, Non-Clog
Working Principle	Cohesive Force & Centrifugal Force
Operating Pressure	1 foot of Gravity Head (0.060 kg/cm)
Max Discharge (CWO)	250 Liters per minute
Filter Element	SS-304 Multi-Surface Screen (Food Grade)
Mesh Size	250 Microns
Inlet Size	110 MM
Clean Water Outlet (CWO)	90 MM
Drain Outlet Size	90 MM
Filter Housing	UV Stabilized HDPE
Filter Efficiency	Above 90
Source of Power	Gravity

FAQs of FL-250 250 SQ Mtr Roof Runoff Filtration System:

Q1: How does the FL-250 Roof Runoff Filtration System operate?

A: The FL-250 works on the principles of cohesive and centrifugal force, filtering rainwater through a self-cleaning, non-clog design. It operates purely by gravity, requiring no electricity, and efficiently filters water from rooftops up to 250 sq mtrs with over 90% filtration efficiency.

Q2: What are the main benefits of installing the FL-250 system?

A: Key benefits include self-cleaning operation, zero power consumption, durable FRP/HDPE housing, and a food-grade SS-304 mesh screen for superior water quality. It ensures low maintenance, long life, and is suitable for sustainable water harvesting and groundwater recharge.

Q3: When should maintenance be performed on the FL-250 filter?

A: The FL-250 requires minimal maintenance due to its self-cleaning design. However, its recommended to inspect and clean the unit periodically, especially before and after the rainy season, to maintain peak performance.

Q4: Where can the FL-250 filter be used?

A: The FL-250 is ideal for residential buildings, small commercial roofs, institutions, and light industrial units with rooftop areas up to 250 sq mtrs. It efficiently manages rainwater collection and filtration in varied rainfall conditions.

Q5: What is the process for procuring and installing the FL-250 system?

A: Customers can purchase the FL-250 through authorized Rainy Filters dealers or online at shop.rainyfilters.com. The system is delivered securely and can be easily installed by any qualified plumber or technician following the user manual.

Q6: How does the system's material enhance performance?

A: The UV-stabilized HDPE housing and SS-304 food-grade multi-surface screen ensure high strength, corrosion resistance, and long-term durability. This robust build guarantees consistent filtration efficiency even under heavy rainfall.
