Send InquiryBorewell Recharging - 'v' - wire Injection Well Indirect Recharging Technology
Price 30000.0 INR/ Unit
MOQ : 1 Unit
Borewell Recharging - 'v' - wire Injection Well Indirect Recharging Technology Specification
- Usage
- Industrial
- Size
- Standard Sizes
- Product Type
- Rain water Harvesting
- Life Expectancy
- 10+ years depending on maintenance
- Application
- Borewell Recharging, Rainwater Harvesting
- Size
- Standard Sizes
- Surface Finish
- Polished Stainless Steel
- Environmental Safety
- Eco-friendly construction
- Compliance
- Meets relevant Indian groundwater recharge standards
- Corrosion Resistance
- Excellent (SS-304)
- Product Type
- Rain water Harvesting
- Usage
- Industrial
- Installation Type
- Vertical Placement in borewell
Borewell Recharging - 'v' - wire Injection Well Indirect Recharging Technology Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 10 Days
About Borewell Recharging - 'v' - wire Injection Well Indirect Recharging Technology
We are a leading borewell recharging company with over 25000 groundwater recharging projects successfully completed across India
VWire Injection Well Technology is an innovative solution designed to recharge groundwater aquifers by efficiently capturing and filtering surface runoff rainwater This system is particularly effective in urban and rural areas experiencing declining groundwater levels
- VWire Injection Well Technology Working Principle
- Collection of Rainwater Runoff
- Rainwater from rooftops open areas or stormwater drains is channeled into a silt trap
- The silt trap captures debris dust and coarse particles to prevent clogging of the recharge system Filtration
Water passes through multiple layers of filtration media such as
- Coarse sand
- Gravel
- Activated carbon
- Charcoal
This removes finer impurities and ensures clean water enters the recharge well

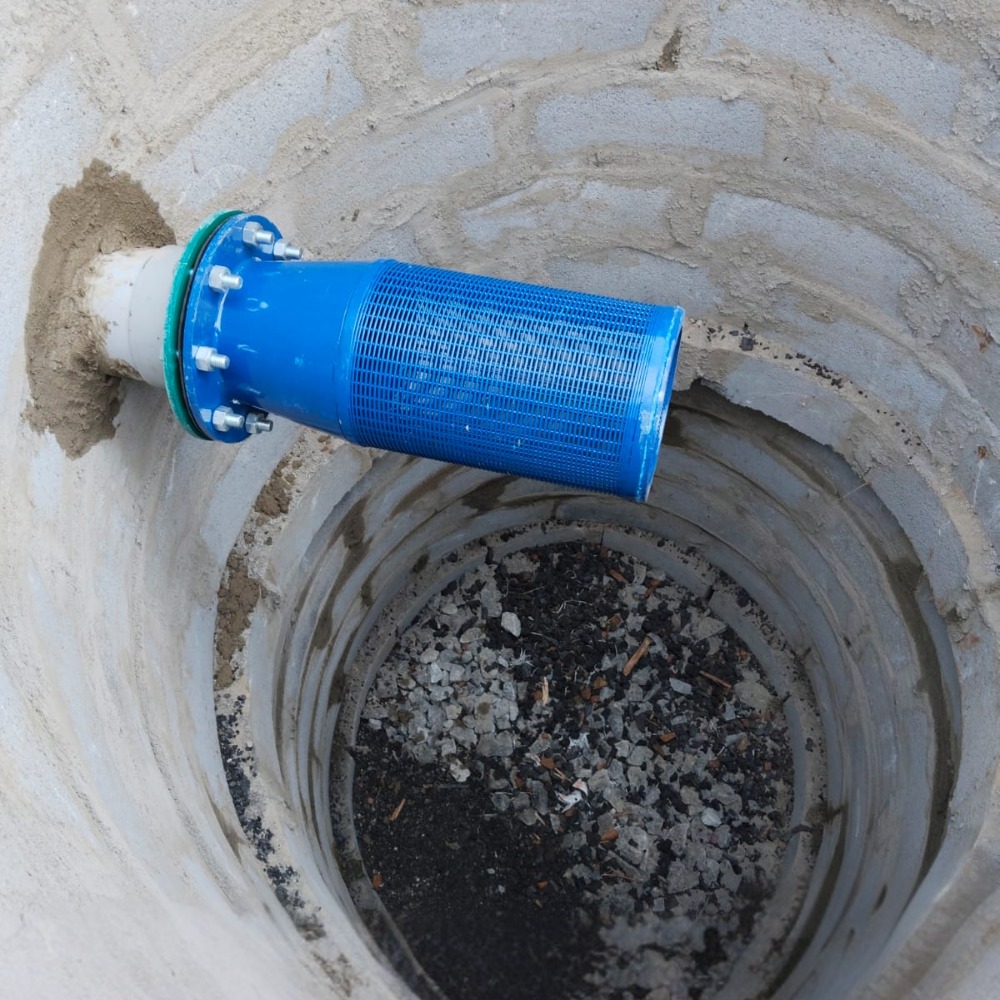

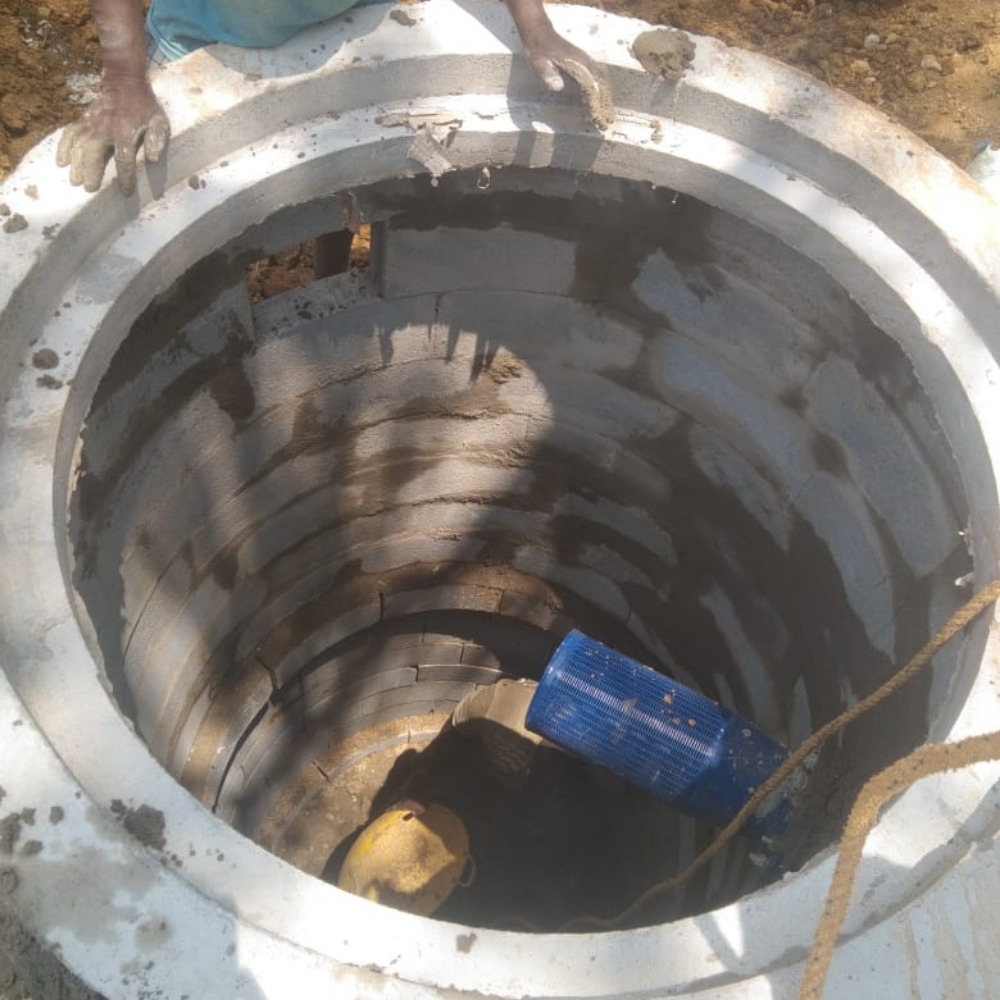

VWire Injection Well
- The filtered water enters the injection well which contains Vshaped stainless steel wire screens
- These nonclogging Vwire screens allow water to percolate while keeping out sediments
Recharge of Groundwater
- Water is injected into deeper aquifers using gravitational force no pump required
- The VWire screens ensure water spreads evenly into the aquifer without clogging the well
Percolation into Aquifers: The water percolates into cracks joints and permeable strata of underground rock formations recharging the groundwater table
Benefits
- Enhances groundwater levels
- Reduces dependency on tankers and pumping
- Ecofriendly and sustainable
- Service Provided
- Design and Installation of VWire Injection Wells
- Customized solutions for sitespecific groundwater recharge
Advanced Vertical Borewell Recharging Technology: This Vwire injection well system employs microfiltration for indirect groundwater recharge maximizing rainwater harvesting in industrial settings With its corrosionresistant SS304 construction and ecofriendly design the technology ensures longevity low maintenance and high filtration efficiency
Ease of Installation and Superior Performance: Designed for vertical placement in borewells installation is straightforward with flanged or threaded connectors Standard and customizable sizes accommodate varied site needs maintaining high flow rates under typical hydrostatic pressure and providing reliable operation across Indias climate spectrum
FAQs of Borewell Recharging v wire Injection Well Indirect Recharging Technology
Q How does the Vwire injection well indirect recharging technology function in industrial rainwater harvesting
A The Vwire injection well utilizes a polished stainless steel filter with a gravelfilled annular space to indirectly recharge groundwater Rainwater and surface runoff are filtered via microfiltration allowing only clean water to enter the borewell efficiently boosting groundwater levels in industrial environments
Q What is the recommended maintenance process for this borewell recharging system
A Routine maintenance involves backwashing the filter to remove trapped sediments and manual inspection of the system to ensure optimal performance With regular cleaning the life expectancy of the SS304 construction exceeds 10 years sustaining high efficiency and preventing clogging
Q When should this technology be deployed at an industrial site
A The system should be installed just before the onset of the rainy season or during planned industrial upgrades Early deployment ensures maximum groundwater recharge from monsoon rains benefiting overall water sustainability and complying with Indian standards
Q Where is this borewell recharging solution most effective
A It is ideal for industrial premises with rainwater harvesting requirements particularly where borewell water levels need replenishment Its robust corrosionresistant build ensures reliability across varied Indian climates and geologies
Q What advantages does the Vwire injection well offer over traditional recharge methods
A The system provides up to 95 filtration efficiency operates under high flow rates resists corrosion and has a long lifespan Its indirect recharge mechanism prevents borewell clogging reduces maintenance needs and supports ecofriendly water management practices
Q How can the size and flow rate of the system be customized for different applications
A Borewell diameter filter capacity and flow rate are customizable to meet sitespecific water table requirements Manufacturers offer standard and tailored sizes with options for flanged or threaded connections to suit diverse installation scenarios
